Compresor cu șurub APS 20 IVR X 10 bar 20 CP/15 kW 410-2000 l/min
Stoc epuizat
- Aveți nevoie de ajutor? Contactați-ne!
- Datorită cunoștințelor noastre, aveți cel mai bun produs.
- Livrare în 2-3 zile
- Peste 65 de ani de experiență pe piața europeană!
Detalii produs
| SKU | 369420-IVR |
|---|---|
| EAN 13 | 8712418367072 |
| Lungime (mm) | 1120 |
| Lățime (mm) | 820 |
| Înălțime (mm) | 1150 |
| Greutate (kg) | 320,00 |
| Sarcină de lucru (muncă/odihnă %) | 100/0 |
| Puterea motorului (cp / kW) | 20.0 HP / 15.0 kW |
| Clasa de eficiență a motorului | IE3 |
| Tip motor | PM |
| Antrenare | Direct driven 1:1 |
| Panou de control | MAM-6080 |
| Limbi disponibile | English, Dutch, Polish, German |
| Uscător | No |
| Rezervor aer | Nu |
| Rezervor galvanizat | Nu |
| Presiune maximă (bar) | 10 |
| Presiune de tăiere (bar) | 6 |
| Livrare aer liber la 8 bar (l/min) | 2000 |
| Livrare aer liber la 10 bar (l/min) | 1870 |
| Livrare minimă de aer liber (l/min) | 410 |
| Livrare minimă de aer liber (m3/h) | 24.6 |
|---|---|
| Livrare maximă de aer liber (l/min) | 2000 |
| Livrare maximă de aer liber (m3/h) | 120 |
| Nivel de zgomot dB (A) (0 m) | 63 |
| Nivel de zgomot dB (A) (4 m) | 43 |
| Tip priză | EU |
| Volum aer de răcire (m3/h) | 5400 |
| Conexiune principală de aer (") | 3/4 |
| Temperatura minimă ambiantă (°C) | 10 |
| Temperatura maximă ambiantă (°C) | 45 |
| Fără ulei | Nu |
| Capacitate ulei (l) | 10 |
| Etape | 1 |
| Pornire | Inverter |
| Tensiune (V) | 400 V / 50 Hz / 3 Ph |
| Clasificare IP | IP55 |
| Viteză variabilă (IVR) | Da |
| RPM minim 10 bar (rpm/Hz) | 1220 |
| RPM maxim 10 bar (rpm/Hz) | 2700 |
| Consum minim de energie 10 bar (kW/m3/h) | 9.3 |
| Consum maxim de energie 10 bar (kW/m3/h) | 11.8 |
Produs recomandat
Descriere produs

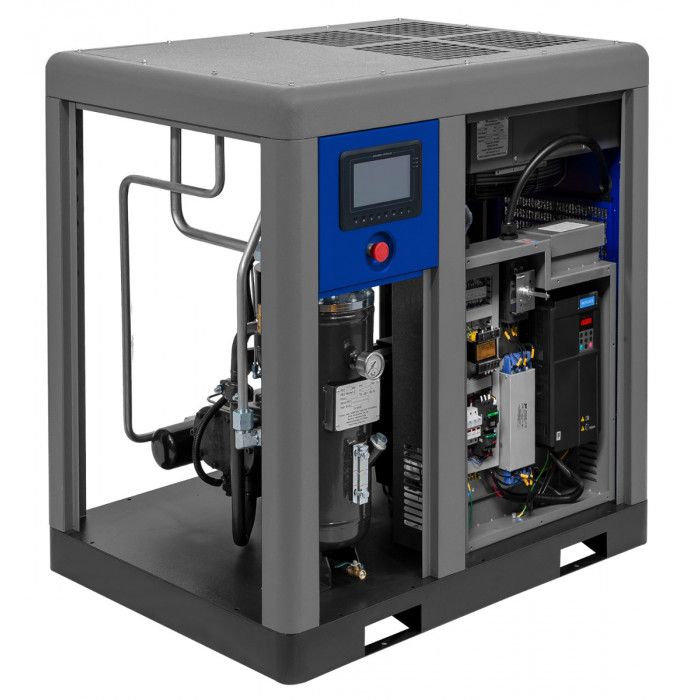

An Airpress compressor with great qualities and characteristics. This 15 kW direct-driven screw compressor with permanent magnet motor accounts for a saving in energy consumption of up to 8% compared to an asynchronous motor. Due to the direct coupling between the motor and the screw block, there is also a saving of 2-3% compared to a belt driven machine. The compressor has a WiFi module to remotely monitor and adjust the compressor. The full color touch screen allows the machine to be adjusted very easily per situation. The yield is a maximum of 2000 liters per minute. Because there are panels all around, the machine is very easily accessible. The service interval of 3,000 hours also ensures lower maintenance costs.
This machine is very suitable for medium and large companies that use around 2000 liters per minute on average.
X-series screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
