Compresor cu șurub APS 30 IVR X G2 10 bar 30 CP/22 kW 1070-3520 l/min
Stoc epuizat
- Aveți nevoie de ajutor? Contactați-ne!
- Datorită cunoștințelor noastre, aveți cel mai bun produs.
- Livrare în 2-3 zile
- Peste 65 de ani de experiență pe piața europeană!
Detalii produs
| SKU | 369430-IVR-G2 |
|---|---|
| EAN 13 | 8712418432480 |
| Lungime (mm) | 1300 |
| Lățime (mm) | 880 |
| Înălțime (mm) | 1185 |
| Greutate (kg) | 430,00 |
| Unități pe produs (buc.) | 1 |
| Sarcină de lucru (muncă/odihnă %) | 100/0 |
| Puterea motorului (cp / kW) | 30.0 HP / 22.0 kW |
| Clasa de eficiență a motorului | IE3 |
| Tip motor | PM |
| Antrenare | Direct driven 1:1 |
| Panou de control | AirVision One |
| Limbi disponibile | French, English, Dutch, Polish, German, Spanish, Russian |
| Uscător | No |
| Rezervor aer | Nu |
| Rezervor galvanizat | Nu |
| Presiune maximă (bar) | 10 |
| Presiune de tăiere (bar) | 6 |
| Livrare aer liber la 7 bar (l/min) | 3520 |
| Livrare aer liber la 8 bar (l/min) | 3360 |
|---|---|
| Livrare aer liber la 9.5 bar (l/min) | 3060 |
| Livrare minimă de aer liber (l/min) | 1070 |
| Livrare minimă de aer liber (m3/h) | 64.2 |
| Livrare maximă de aer liber (l/min) | 3520 |
| Livrare maximă de aer liber (m3/h) | 211.2 |
| Nivel de zgomot dB (A) (0 m) | 66 |
| Nivel de zgomot dB (A) (4 m) | 46 |
| Tip priză | EU |
| Volum aer de răcire (m3/h) | 7000 |
| Conexiune principală de aer (") | 1 1/4 |
| Fără ulei | Nu |
| Capacitate ulei (l) | 15 |
| Etape | 1 |
| Pornire | Inverter |
| Tensiune (V) | 400 V / 50 Hz / 3 Ph |
| Clasificare IP | IP55 |
| Viteză variabilă (IVR) | Da |
| Viteză pompă (rpm) | 1000 - 2700 |
Produs recomandat
Descriere produs

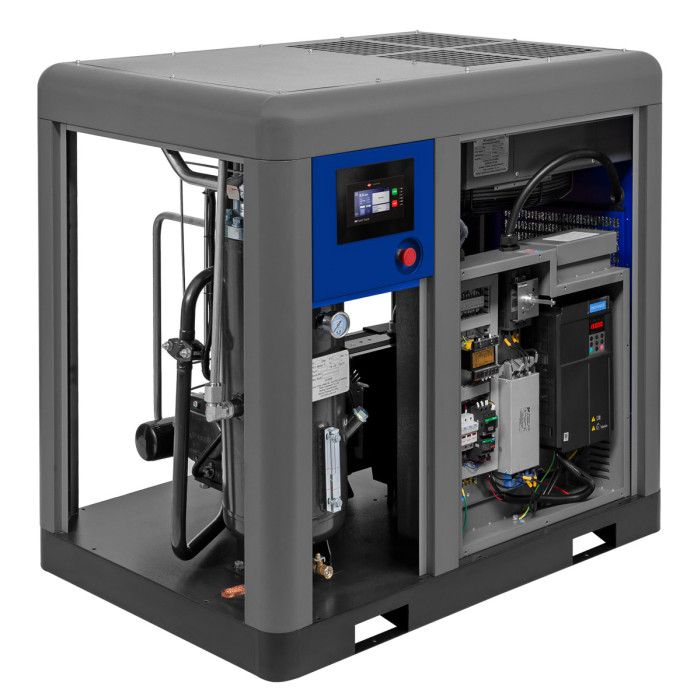

A compressor with great qualities and characteristics. This 22 kW Airpress compressor is built in such a way that it saves maximum energy and maximum efficiency. A directly coupled screw block to a permanent magnet motor. Thanks to the oversized screw block, this compressor delivers maximum output even at low revs. This compressor can deliver up to 3300 liters per minute. The full color touch screen makes reading and adjusting very easy. Because there are panels all around, the machine is very easily accessible. The service interval of 3,000 hours also ensures lower maintenance costs.
This machine is very suitable for large companies that use around 3200 liters per minute on average.
X series Screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
