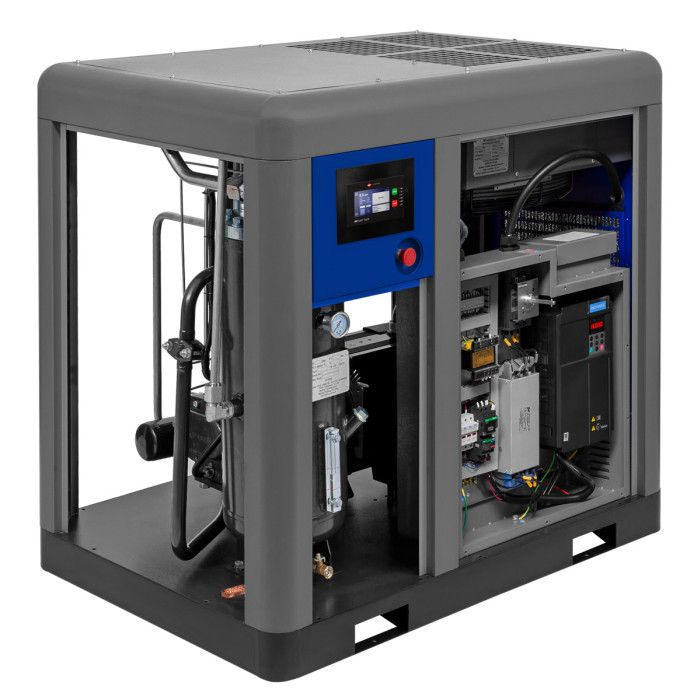

Compresor cu șurub APS 40 IVR X G2 10 bar 40 CP/30 kW 1520-4950 l/min

minus-circle Stoc epuizat

exclamation-circle Numai 2 rămase
SKU 369440-IVR-G2
  • heroicons/solid/check-circle Aveți nevoie de ajutor? Contactați-ne!
  • heroicons/solid/check-circle Datorită cunoștințelor noastre, aveți cel mai bun produs.
  • heroicons/solid/check-circle Livrare în 2-3 zile
  • heroicons/solid/check-circle Peste 65 de ani de experiență pe piața europeană!

Detalii produs

SKU 369440-IVR-G2
EAN 13 8712418432497
Lungime (mm) 1300
Lățime (mm) 950
Înălțime (mm) 1360
Greutate (kg) 550,00
Unități pe produs (buc.) 1
Sarcină de lucru (muncă/odihnă %) 100/0
Puterea motorului (cp / kW) 40.0 HP / 30.0 kW
Clasa de eficiență a motorului IE3
Tip motor PM
Antrenare Direct driven 1:1
Panou de control AirVision One
Limbi disponibile French, English, Dutch, Polish, German, Spanish, Russian
Uscător No
Rezervor aer Nu
Rezervor galvanizat Nu
Presiune maximă (bar) 10
Presiune de tăiere (bar) 6
Livrare aer liber la 7 bar (l/min) 4950
Livrare aer liber la 8 bar (l/min) 4720
Livrare aer liber la 9.5 bar (l/min) 4300
Livrare minimă de aer liber (l/min) 1520
Livrare minimă de aer liber (m3/h) 91.2
Livrare maximă de aer liber (l/min) 4950
Livrare maximă de aer liber (m3/h) 297
Nivel de zgomot dB (A) (0 m) 68
Nivel de zgomot dB (A) (4 m) 48
Tip priză EU
Volum aer de răcire (m3/h) 7600
Conexiune principală de aer (") 1 1/4
Fără ulei Nu
Capacitate ulei (l) 15
Etape 1
Pornire Inverter
Tensiune (V) 400 V / 50 Hz / 3 Ph
Clasificare IP IP55
Viteză variabilă (IVR) Da
Viteză pompă (rpm) 820 - 2200

Produs recomandat

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Ulei pentru compresoare cu șurub FOODGRADE 5 litri (ambalaj)
1.144,75 Lei 1.362,25 Lei
Vezi Detalii

Descriere produs

A compressor with great qualities and characteristics. This 30 kW is built in such a way that it saves maximum on energy consumption and maximum efficiency. A directly coupled screw block to a permanent magnet motor. Thanks to the oversized screw block, this compressor delivers maximum output even at low revs. The temperature-controlled fan also only runs when it is needed, so as long as the oil temperature is below the set value, it does not run and there is also no power consumption. This compressor can deliver approximately 4500 liters per minute. The full color touch screen makes reading and adjusting very easy. Because there are panels all around, the machine is very easily accessible. The service interval of 3,000 hours also ensures lower maintenance costs.

This machine is very suitable for large companies that, for example, radiate and therefore have a very varying decrease in compressed air.

X series Screw compressors

By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
