Compresor cu șurub APS 50 IVR X G2 10 bar 50 CP/37 kW 1970-6510 l/min
Stoc epuizat
- Aveți nevoie de ajutor? Contactați-ne!
- Datorită cunoștințelor noastre, aveți cel mai bun produs.
- Livrare în 2-3 zile
- Peste 65 de ani de experiență pe piața europeană!
Detalii produs
| SKU | 369450-IVR-G2 |
|---|---|
| EAN 13 | 8712418432503 |
| Lungime (mm) | 1470 |
| Lățime (mm) | 1000 |
| Înălțime (mm) | 1370 |
| Greutate (kg) | 610,00 |
| Unități pe produs (buc.) | 1 |
| Sarcină de lucru (muncă/odihnă %) | 100/0 |
| Puterea motorului (cp / kW) | 50.0 HP / 37.0 kW |
| Clasa de eficiență a motorului | IE3 |
| Tip motor | PM |
| Antrenare | Direct driven 1:1 |
| Panou de control | AirVision One |
| Limbi disponibile | French, English, Dutch, Polish, German, Spanish, Russian |
| Uscător | No |
| Rezervor aer | Nu |
| Rezervor galvanizat | Nu |
| Presiune maximă (bar) | 10 |
| Presiune de tăiere (bar) | 6 |
| Livrare aer liber la 7 bar (l/min) | 6510 |
| Livrare aer liber la 8 bar (l/min) | 6190 |
|---|---|
| Livrare aer liber la 9.5 bar (l/min) | 5620 |
| Livrare minimă de aer liber (l/min) | 1970 |
| Livrare minimă de aer liber (m3/h) | 118.2 |
| Livrare maximă de aer liber (l/min) | 6510 |
| Livrare maximă de aer liber (m3/h) | 390.6 |
| Nivel de zgomot dB (A) (0 m) | 70 |
| Nivel de zgomot dB (A) (4 m) | 50 |
| Tip priză | EU |
| Volum aer de răcire (m3/h) | 7600 |
| Conexiune principală de aer (") | 1 1/2 |
| Fără ulei | Nu |
| Capacitate ulei (l) | 18 |
| Etape | 1 |
| Pornire | Inverter |
| Tensiune (V) | 400 V / 50 Hz / 3 Ph |
| Clasificare IP | IP55 |
| Viteză variabilă (IVR) | Da |
| Viteză pompă (rpm) | 1000 - 2700 |
Produs recomandat
Descriere produs

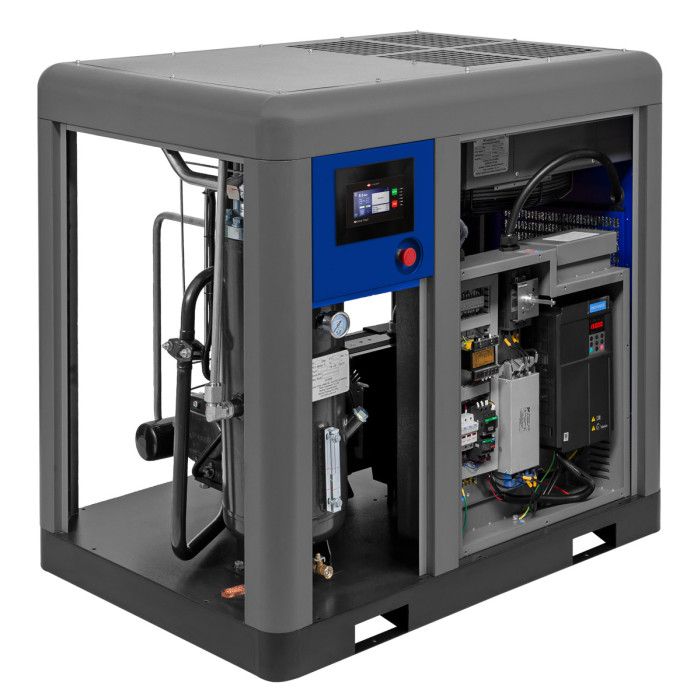

A compressor with great qualities and characteristics. This 37 kW is the largest compressor from the single-stage line that we offer. A directly coupled oversized screw block on a permanent magnet motor ensures maximum efficiency. Maximum yield even at low revs. The temperature controlled fan only runs when it is needed, so as long as the oil temperature is below the set value, it does not run and there is also no power consumption. This compressor can deliver up to 6200 liters per minute. The full color touch screen makes reading and adjusting very easy. All components are easily accessible when the panels are removed during maintenance. The machine has been carefully designed so that fewer parts are maintenance-sensitive. The service interval of 3,000 hours also ensures lower maintenance costs.
This machine is very suitable for large companies that, for example, radiate and therefore have a very varying decrease in compressed air.
X series Screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
